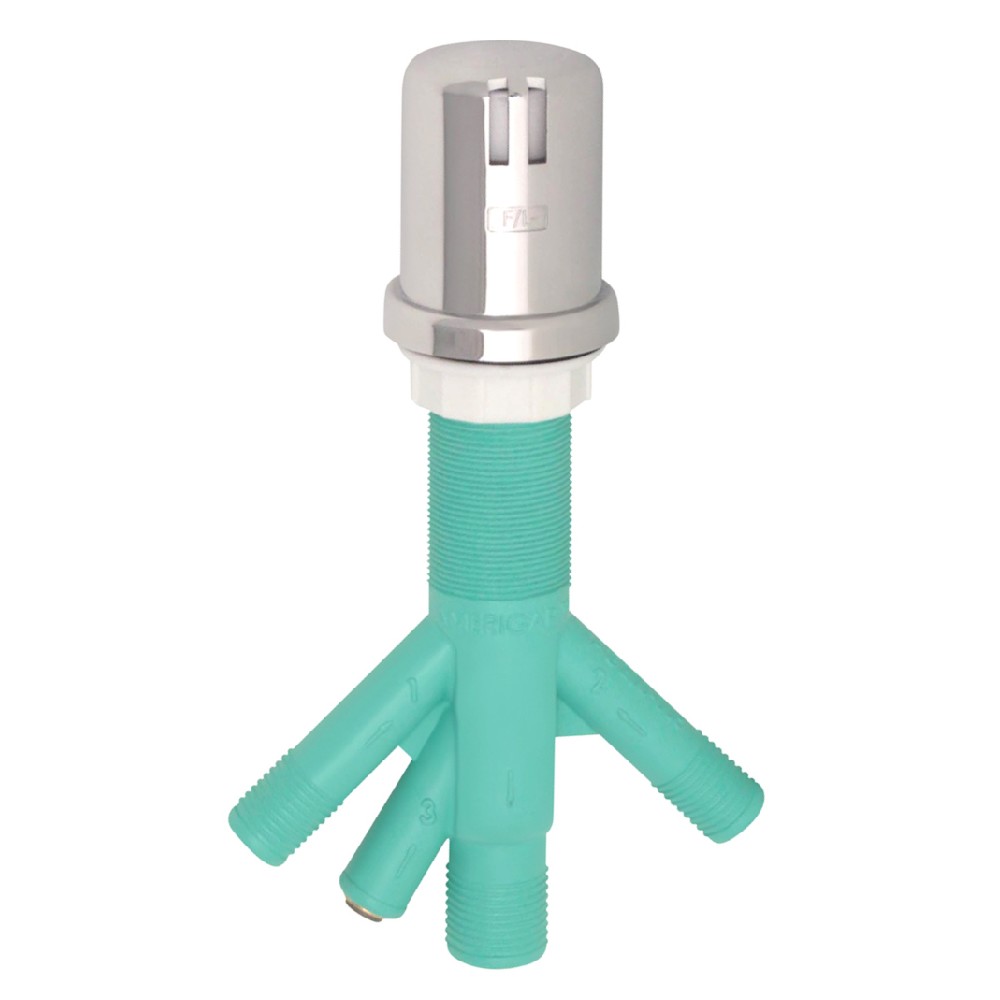

AG200-008 Triple Air Gap for Double Drawer or Two Separate Dishwashers and a Reverse Osmosis Filter with Extra Long Thread
❤ FLOW RATE: The AG200-008’s maximum flow rate is 5.5 gallons per minute (GPM) for each port. The maximum flow rate of the 1/4-inch port for the reverse osmosis (RO) filter is 1 GPM. The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.
❤ INLET PORTS: The AG200-008 accepts a standard 5/8-inch inside diameter hoses from a dishwasher and a 1/4-inch outside diameter tubing from Reverses Osmosis filter (with or without tank). The hoses from the dishwasher slide onto the side ports and are secured using stainless worm clamps (not included). The RO tubing connects to a push-in quick-connect adapter. Make sure there are no kinks in the hose and that water passes freely. This air gap is compatible with all dishwashers and RO filters.
❤ OUTLET PORTS: The drainage side of the air gap connects to a 7/8-inch inside diameter hose, which routes discharge water to the side drain connection on the garbage disposal. This hose is available from Home Depot (search for “PVC Disposal Discharge Hose”). When installing this hose, make sure that there is no sagging or loops. Any sagging will create standing water and will restrict the proper draining of the air gap. Secure both ends of the hose with a 1-inch stainless steel worm clamp.
❤ THREADED BODY: The AG200-008 has a body with a thread that enables air gap mounting through a standard countertop. Countertop thickness can be up to 2-1/2-inches, and it does not require any special modification to accommodate this air gap. The body of the air gap is made from durable plastic to resists bending or deforming.
❤ MOUNTING NUT: The AG200-008 has a durable mounting nut that will not strip or become loose. The multi-threaded nut can be tightened without the worry of damaging threads. This configuration provides a simple and reliable installation that prevents leaks and assures trouble-free operation after the air gap is installed.
❤ DECORATIVE CAP: The AG200-008 comes with a standard polished chrome cap. Other caps are available to match your kitchen’s sink faucet. Select the cap that is closest to the color of the faucet. Caps are sold separately.
❤ COMPATIBILITY: Our reverse osmosis air gaps such as the AG200-008 are not compatible with reverse osmosis faucets with air gap.
A dishwasher air gap is a critical component in maintaining a safe water supply. It prevents contaminants in the sink from flowing into the dishwasher and is required by code in most states.
The AG200-008’s maximum flow rate is 5.5 gallons per minute (GPM) for each port. The maximum flow rate of the 1/4-inch port for the reverse osmosis (RO) filter is 1 GPM. The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.
The AMERIGAP brand dual air gap provides two inlet ports for simultaneous drainage of discharge water from a double drawer dishwasher or two separate dishwashers and one inlet port for a reverse osmosis filter. The RO inlet port accommodates both with tank and tankless reverse osmosis filters. A three-in-one air gap provides an easy way to connect the RO system into the drainage.
This air gap is easy to install, easy to use, and easy to maintain. The AG200-008 air gap is listed by UPC® and tested for compliance with IPC® and NSF® standards.
Materials
| Cap, decorative | ABS, Chrome plated |
| Cap | Polypropylene |
| Top housing | Polypropylene |
| Washer | Black Ethylene Proplene |
| Nut | Polypropylene |
| Body housing | Polypropylene |
