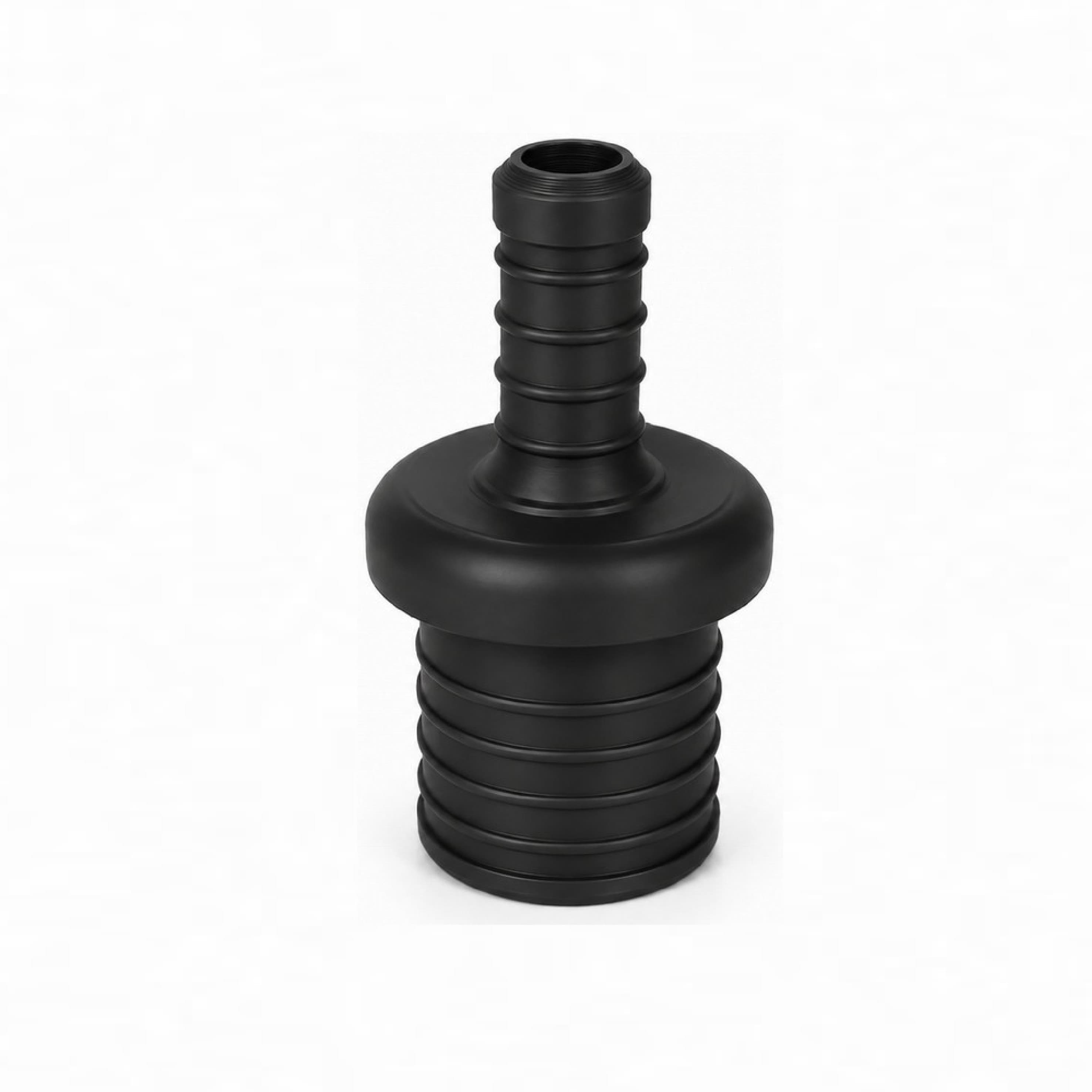

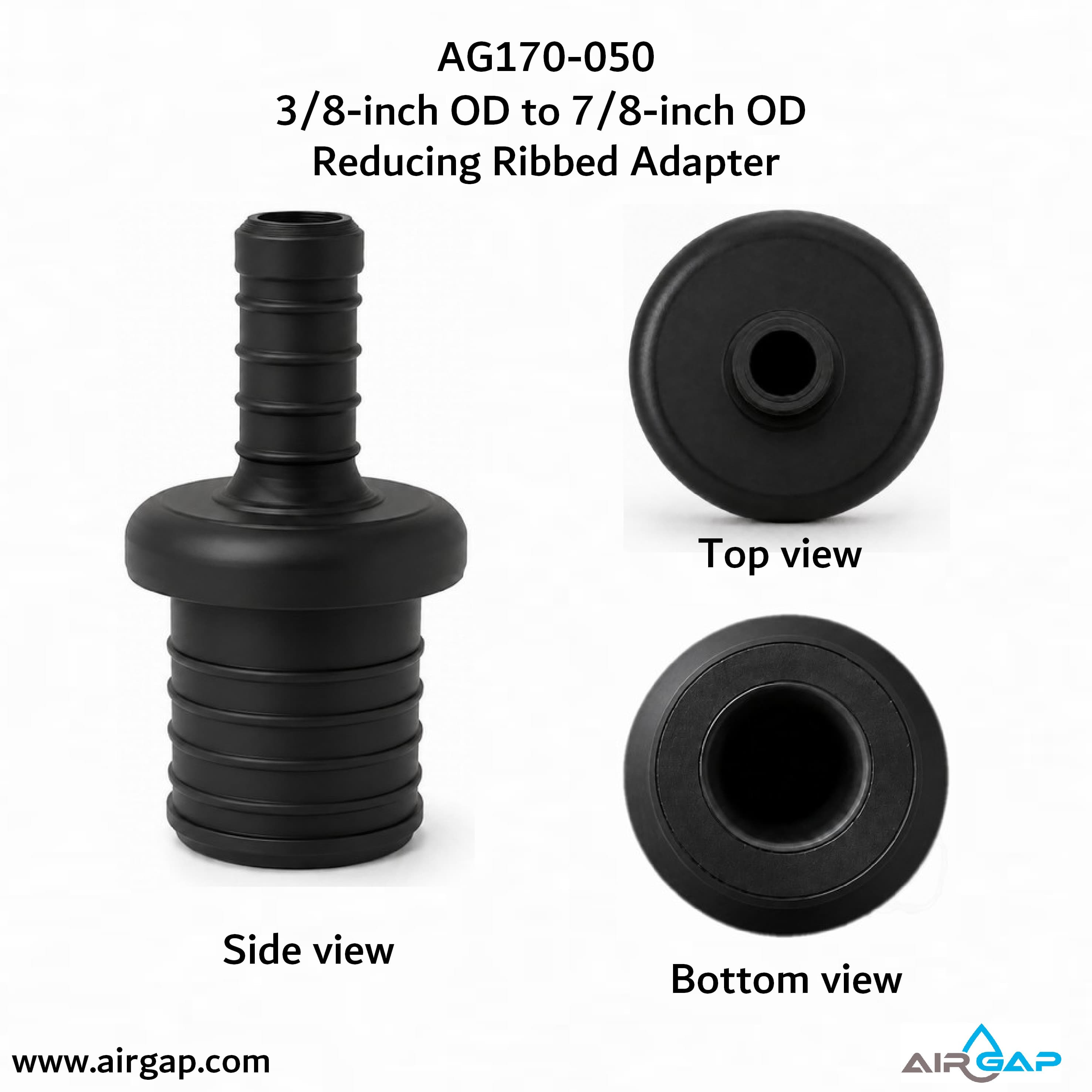

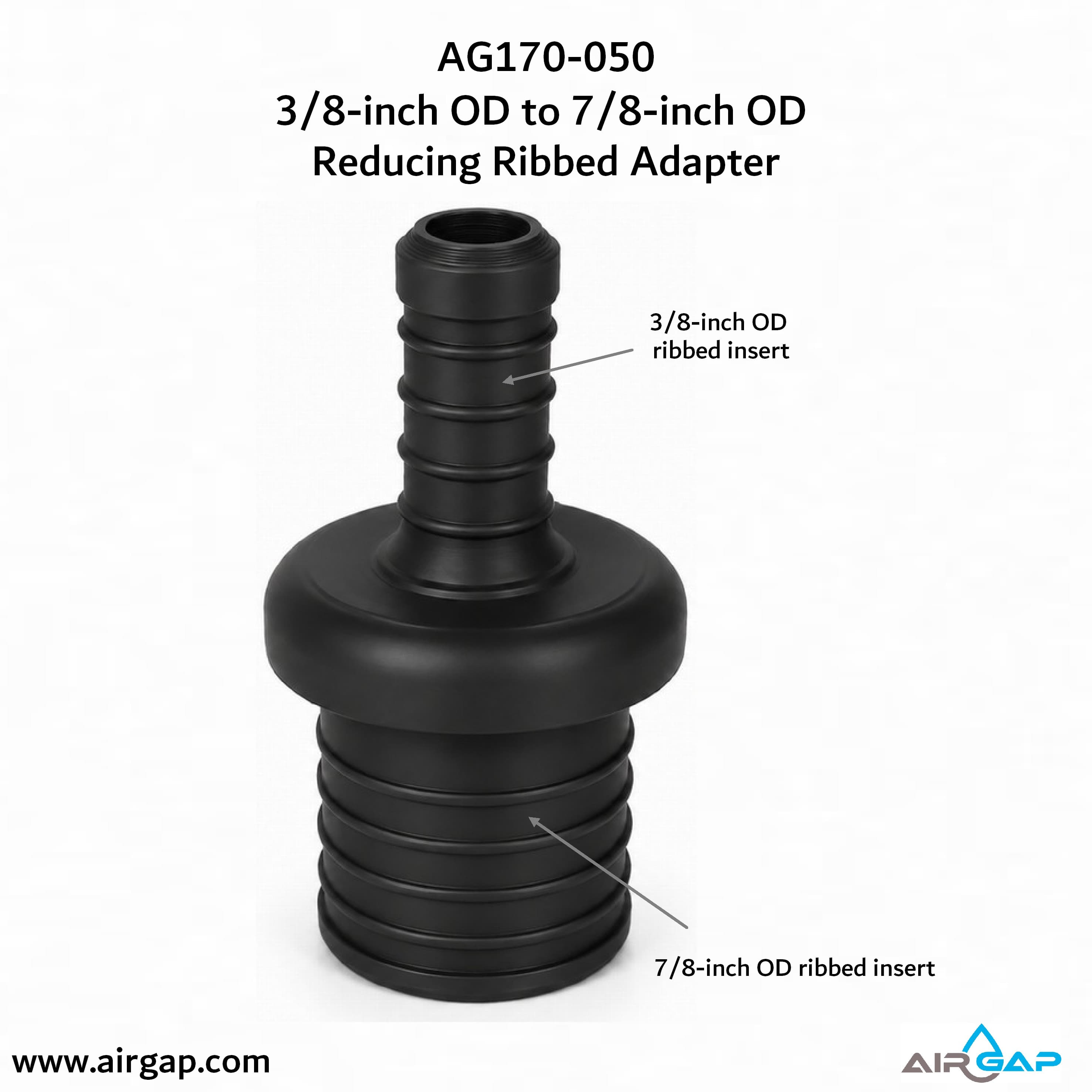

AG170-050 3/8-inch OD to 7/8-inch OD Reducing Ribbed Adapter

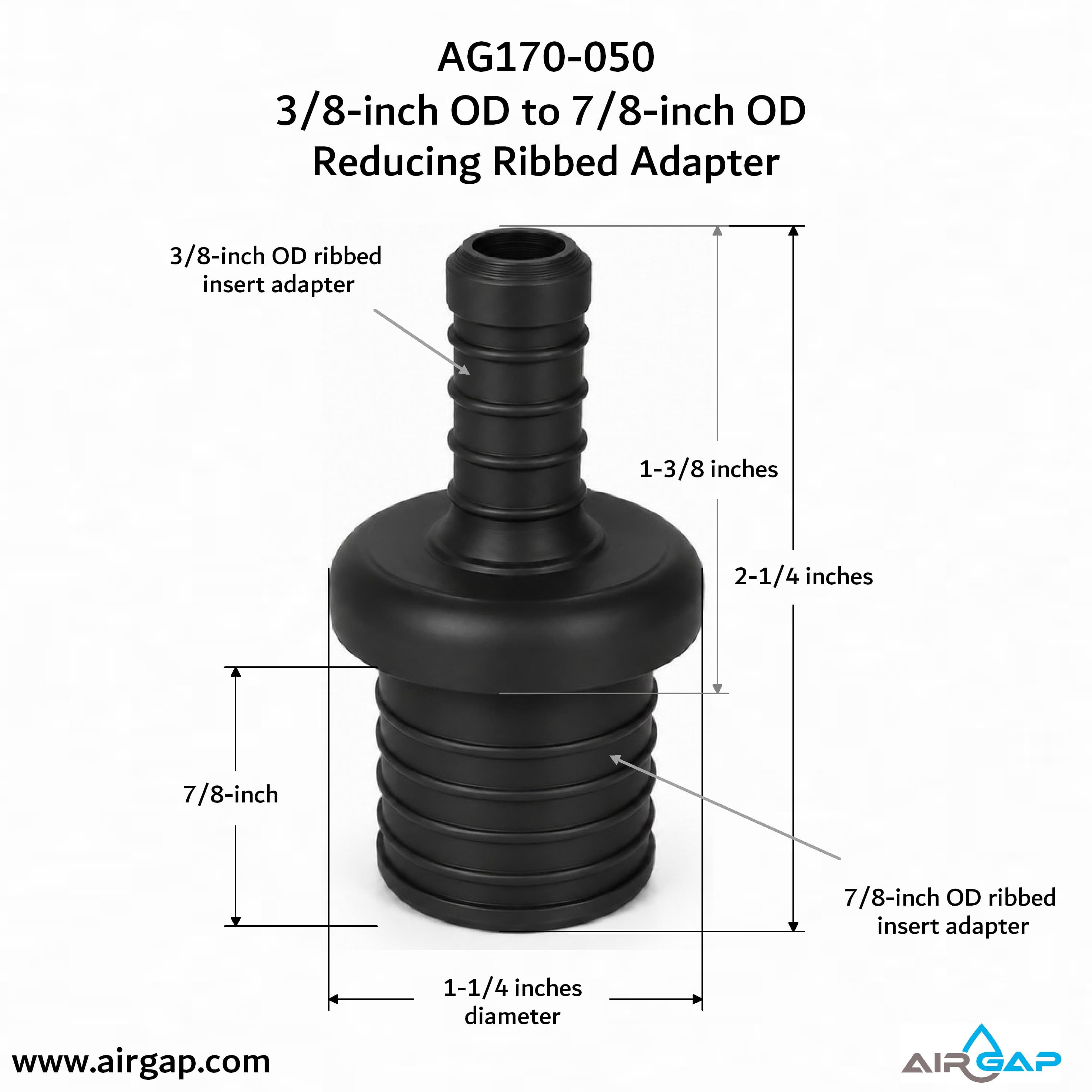

❤ INLET: The AG170-050 is designed with a 3/8-inch OD ribbed hose insert inlet that accommodates 3/8-inch ID tubing for a quick and convenient tubing connection.
❤ OUTLET: The AG170-050 is designed with a 7/8-inch OD ribbed hose insert outlet that accommodates 7/8-inch ID hose for connection to larger drain hose applications.
❤ MATERIAL: The AG170-050 body is made from durable black polypropylene material. Polypropylene provides long service life and is suitable for use in applicable drain connection applications. The working life of the polypropylene couplings is approximately 25 years.
❤ FLOW RATE: The AG170-050 has been tested for flow rates up to 8 GPM.
❤ MAINTENANCE-FRIENDLY DESIGN: The ribbed hose insert design provides a secure connection while allowing easier hose removal during service or maintenance.

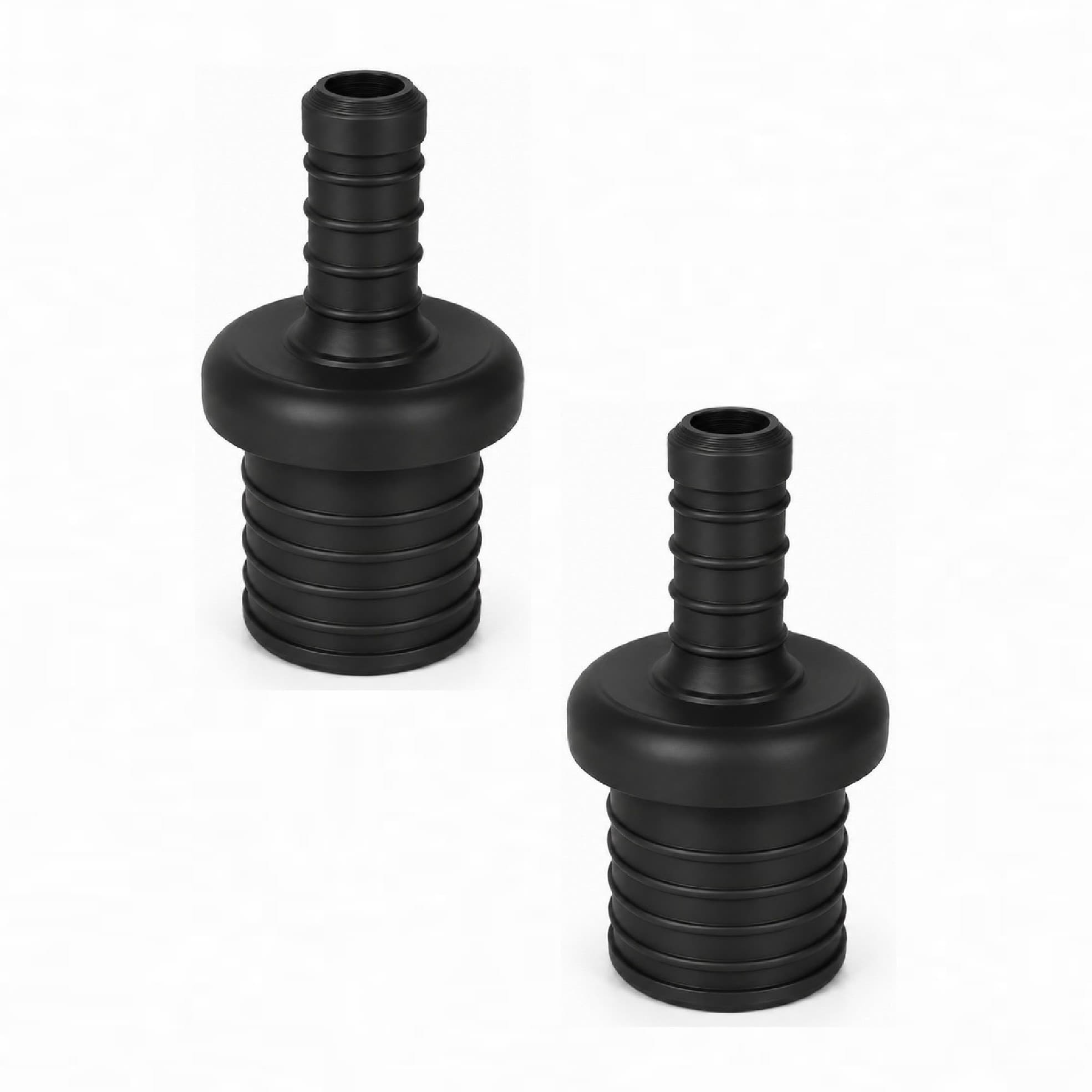

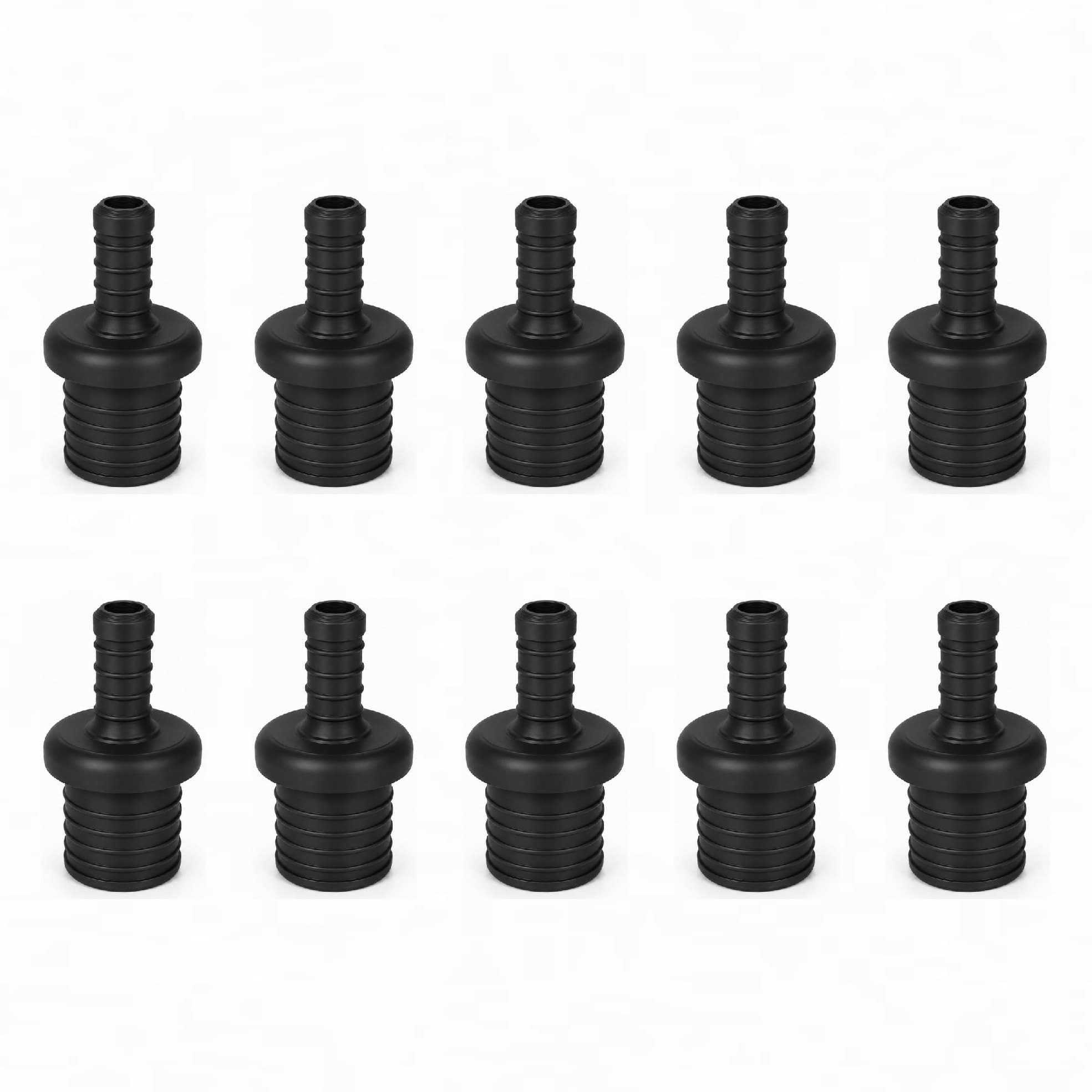

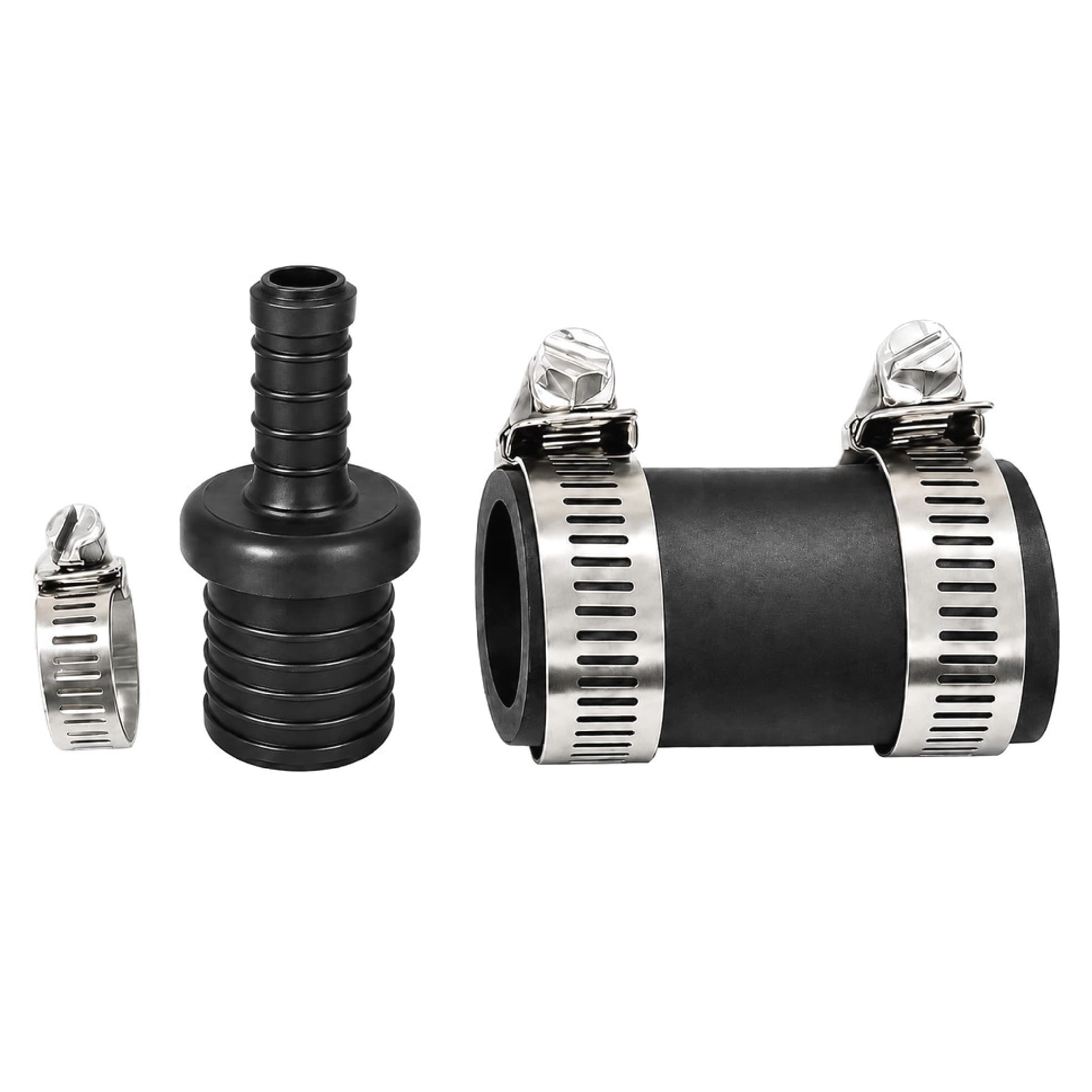

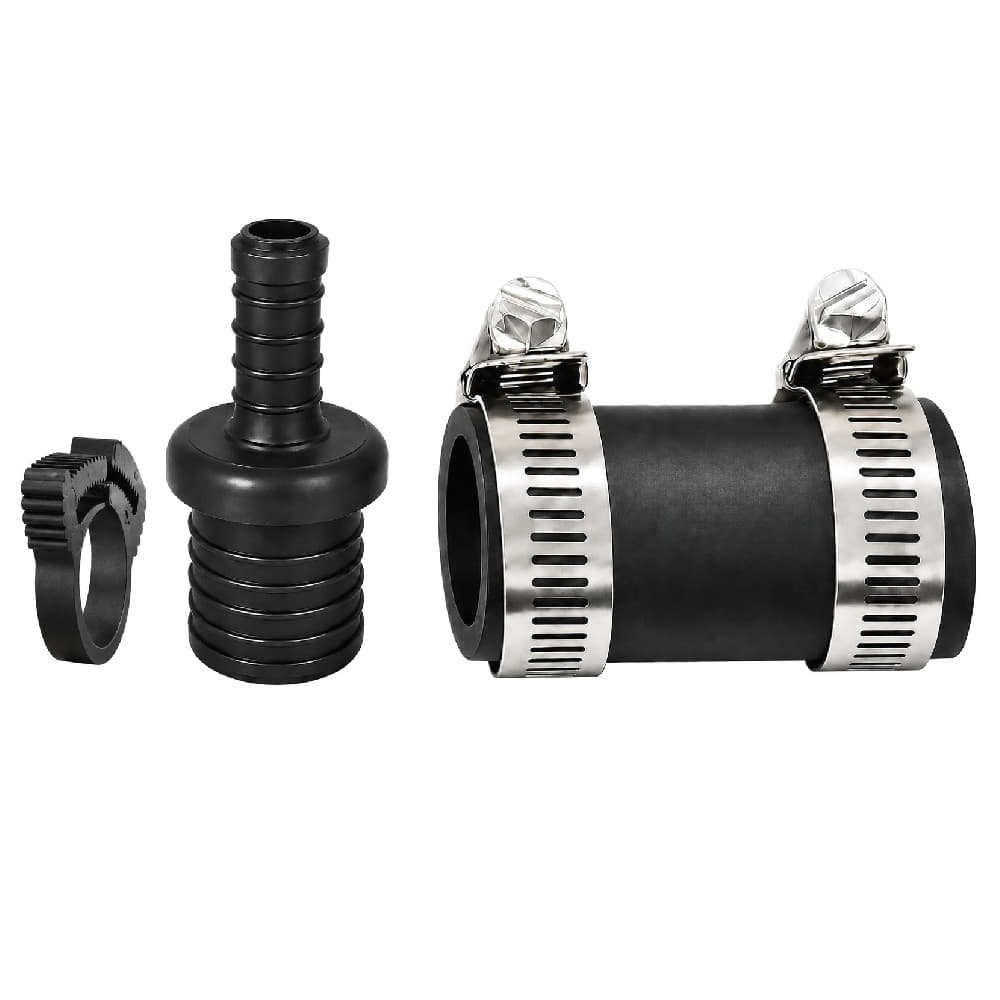

The Reducing Ribbed Adapter is available in multiple quantity packs, including 1 pc., 2 pcs., 10 pcs., and 50 pcs. These items are available for direct purchase on Amazon. Click on the product image below to view and order.
|
|
|
|

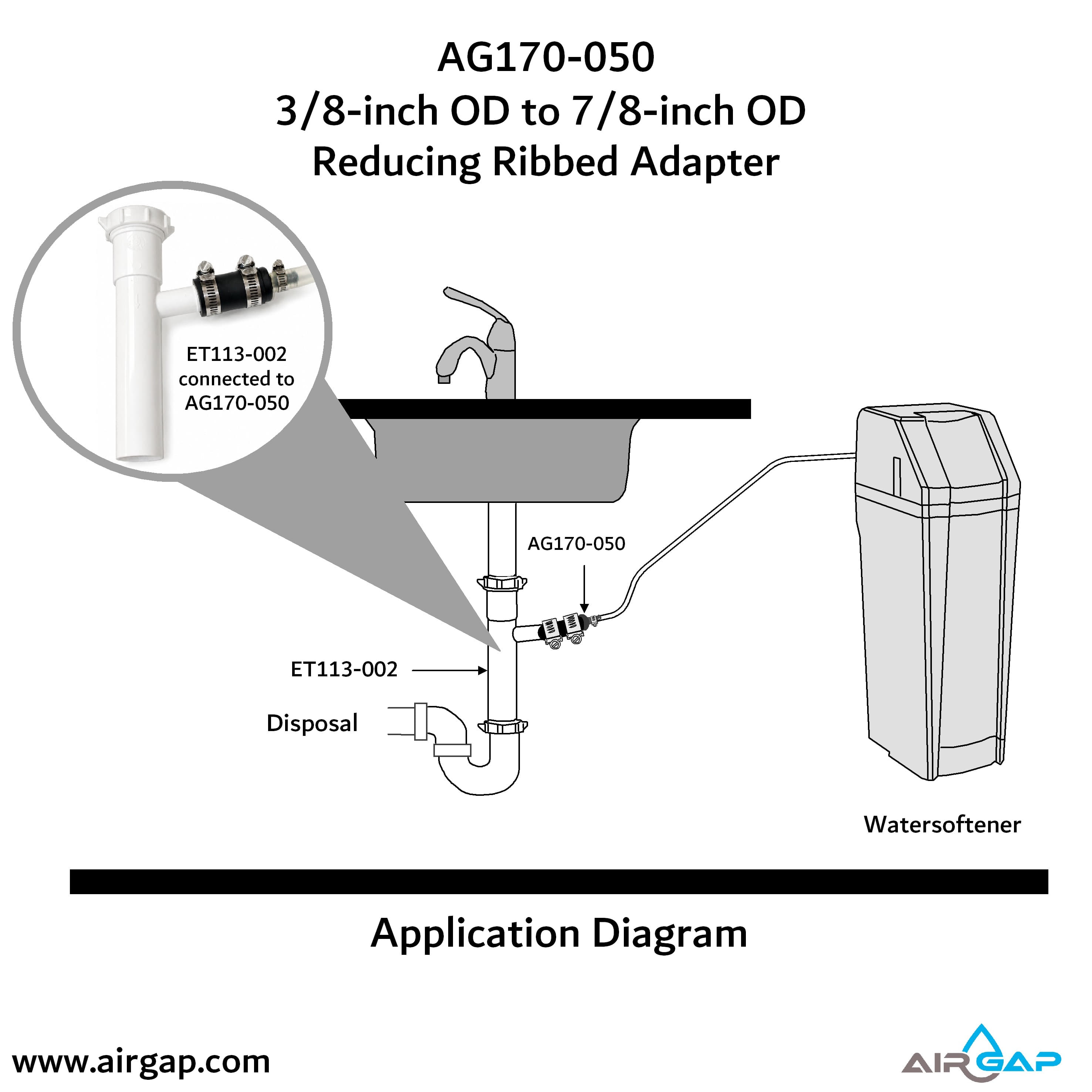

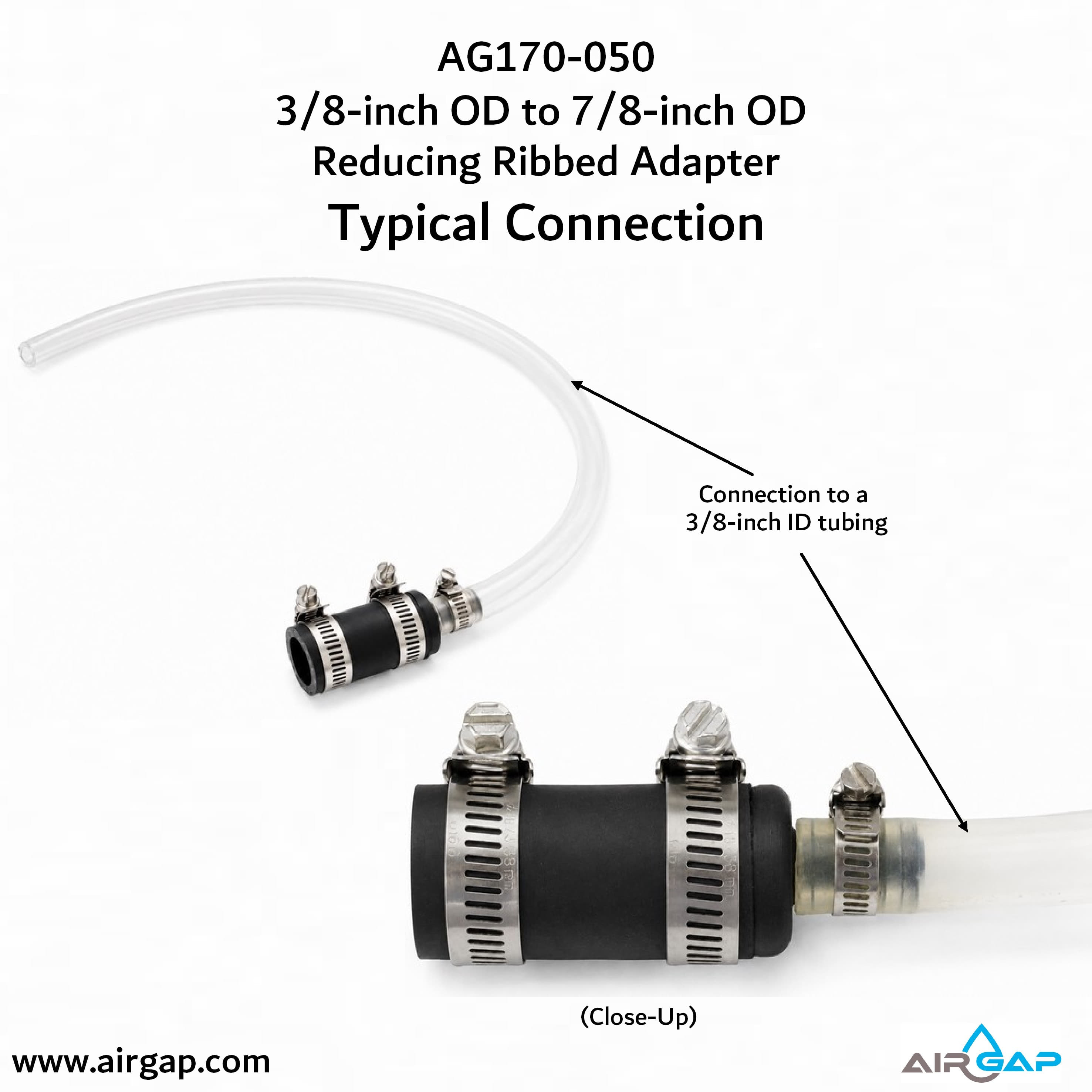

The AG170-050 is a black polypropylene reducing ribbed hose adapter used to transition 3/8-inch ID tubing to 7/8-inch ID hose in drain applications, such as ice maker drain lines, condensate pump discharge lines, water softener and similar field installations where a larger drain hose connection is required.

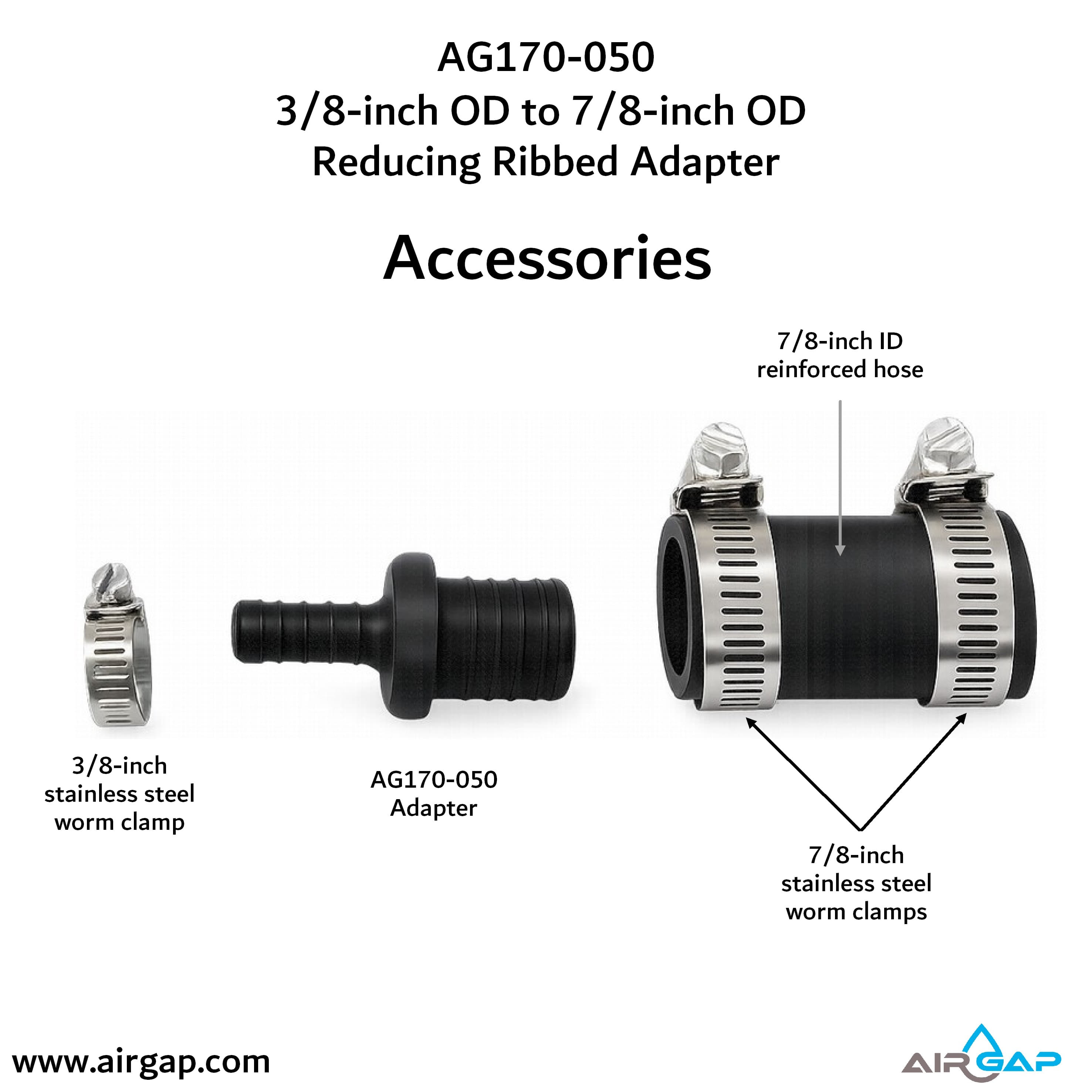

The adapter features ribbed hose connections on both ends to provide a secure coupling while allowing easier hose removal during maintenance. The ribbed configuration also helps maximize the internal diameter on the 3/8-inch side for improved flow performance.
The AG170-050 has been tested for flow rates up to 8 gallons per minute (GPM) and can sustain acidic condensate discharge. It is chemically inert and will perform at -4 to 212°F (-20 to 100°C). It is designed for permanent installations.
